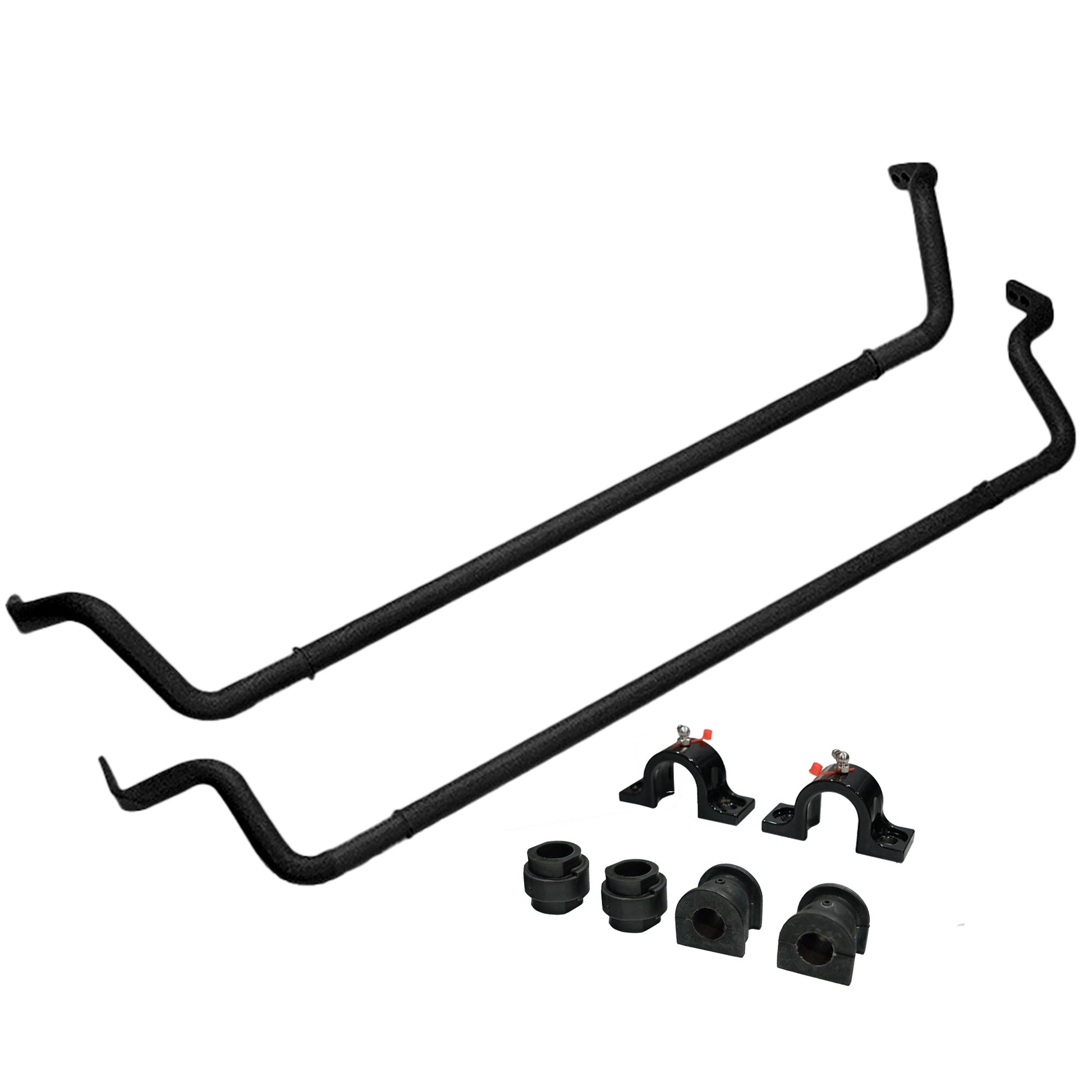

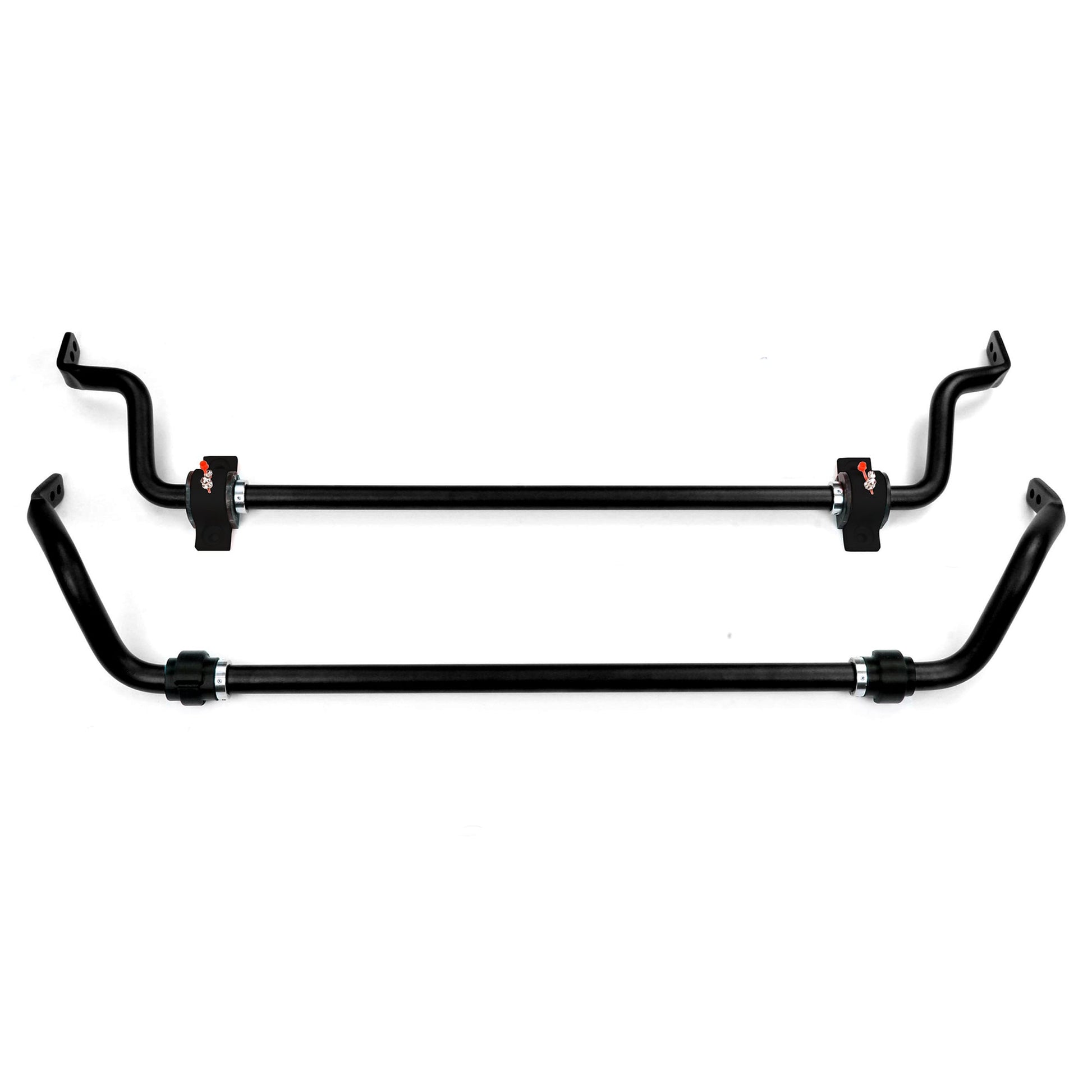

TGK Motorsport Front and Rear Sway bar Kit - B8 A4/S4/RS4/A5/S5/RS5

TGK Motorsport Front and Rear Sway bar Kit - B8 A4/S4/RS4/A5/S5/RS5

$499.99 USD
$499.99 USD
Sale Sold out
Overview

If you're looking to improve the handling of your Audi B8 A4/S4/RS4/A5/S5/RS5, this is the best place to start! These cars have a lot more body roll than what's to be desired factory, and the stock sway bars don't quite do enough to keep the body from understeering.

TGK Motorsport Sway bars are made from solid spring steel to give you the best strength in a smaller size, while helping eliminate understeer from this platform.

Specifications
Front Bar Diameter 28MM Solid Spring Steel
Front Stiffness — Stiff 119% Increase over OEM
Front Stiffness — Stiffer 168% Increase over OEM
Front Finish Powder Coated for Corrosion Resistance
Front Bushing Mounts Utilizes OEM Mounts
Rear Bar Diameter 25.4MM Solid Spring Steel
Rear Stiffness — Stiff 139% Increase over OEM
Rear Stiffness — Stiffer 186% Increase over OEM
Rear Finish Powder Coated for Corrosion Resistance
Rear Brackets Black Anodized 6061-T6 Billet with Check Valve Grease Port
Features & Benefits
✓
Solid Spring Steel Construction Both front and rear bars are machined from solid spring steel, delivering maximum strength in a compact diameter without sacrificing durability.
✓
Eliminates Excess Body Roll Engineered specifically for the B8 platform to address the factory's excessive body roll and correct the inherent understeer tendency of the stock sway bars.
✓
Two Stiffness Settings Both front and rear bars offer Stiff and Stiffer tune options, allowing you to dial in the handling balance that suits your driving style and use case.
✓
Powder Coated Finish Front and rear bars receive a durable powder coat finish for long-term corrosion resistance in all weather and track conditions.
✓
OEM-Compatible Front Mounts Front bar bushings utilize the factory mounting locations, ensuring a clean, straightforward installation without modification.
✓

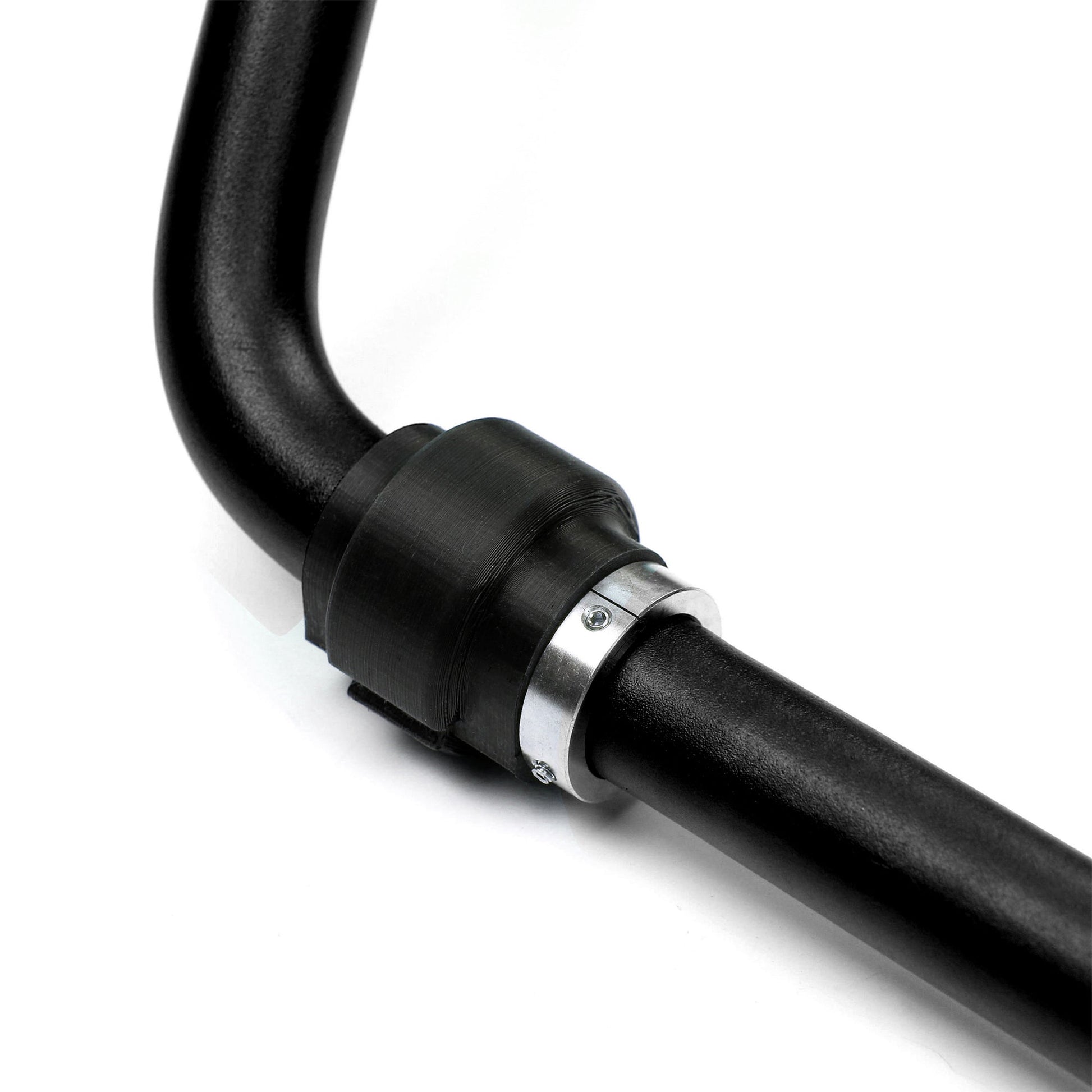

Billet Rear Brackets with Grease Port Rear bar features black anodized 6061-T6 billet aluminum brackets equipped with a check valve grease port for easy ongoing maintenance and longevity.
Frequently Asked Questions
Which stiffness setting should I choose — Stiff or Stiffer?
The Stiff setting is recommended for street-driven vehicles or those wanting a noticeable improvement over stock without an overly aggressive feel. The Stiffer setting is best suited for track use or drivers who want maximum roll reduction and the sharpest possible handling response.
Can I install the front and rear sway bars independently, or do I need to purchase both?
Each bar is available independently, so you can install just the front or just the rear based on your specific handling goals. However, installing both together provides the most balanced and complete improvement to the platform's body roll and understeer characteristics.
Do these sway bars require any modification to the vehicle for installation?
The front sway bar bushings utilize the OEM mounting locations, so no modification is required for the front. The rear bar installs using the included 6061-T6 billet brackets, which are designed to bolt into the factory positions on the B8 chassis.
What is the check valve grease port on the rear brackets used for?
The check valve grease port allows you to re-grease the rear bar's bushing interface over time without disassembling the brackets. This extends the service life of the bushings and keeps the bar operating quietly and smoothly.
Are these sway bars compatible with all variants of the B8 platform including RS4 and RS5?
Yes. These sway bars are designed to fit the 2008–2016 Audi A4, 2008–2016 S4, 2012–2015 RS4, 2007–2016 A5, 2007–2016 S5, and 2010–2016 RS5, covering the full B8 and B8.5 model range across all trim levels.
