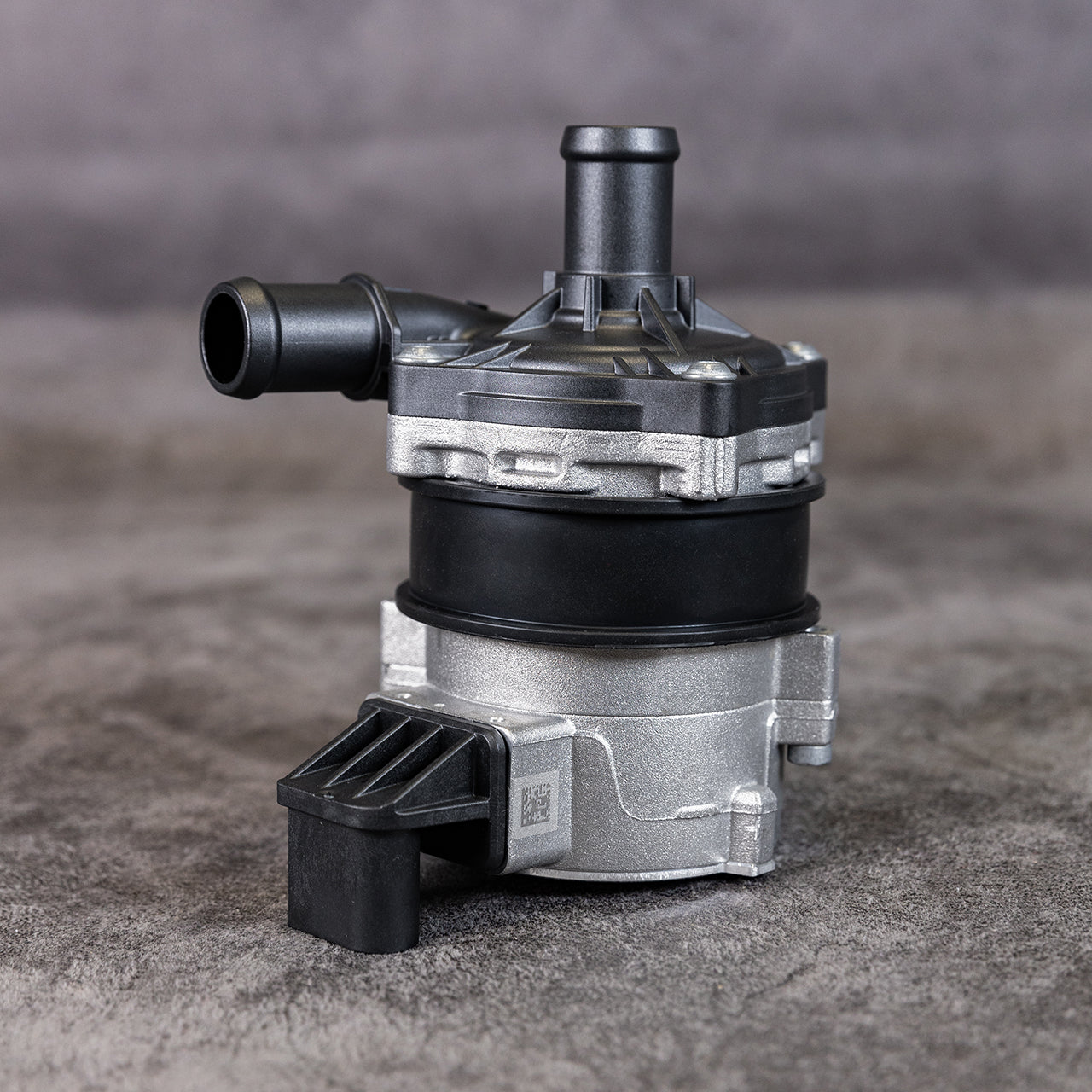

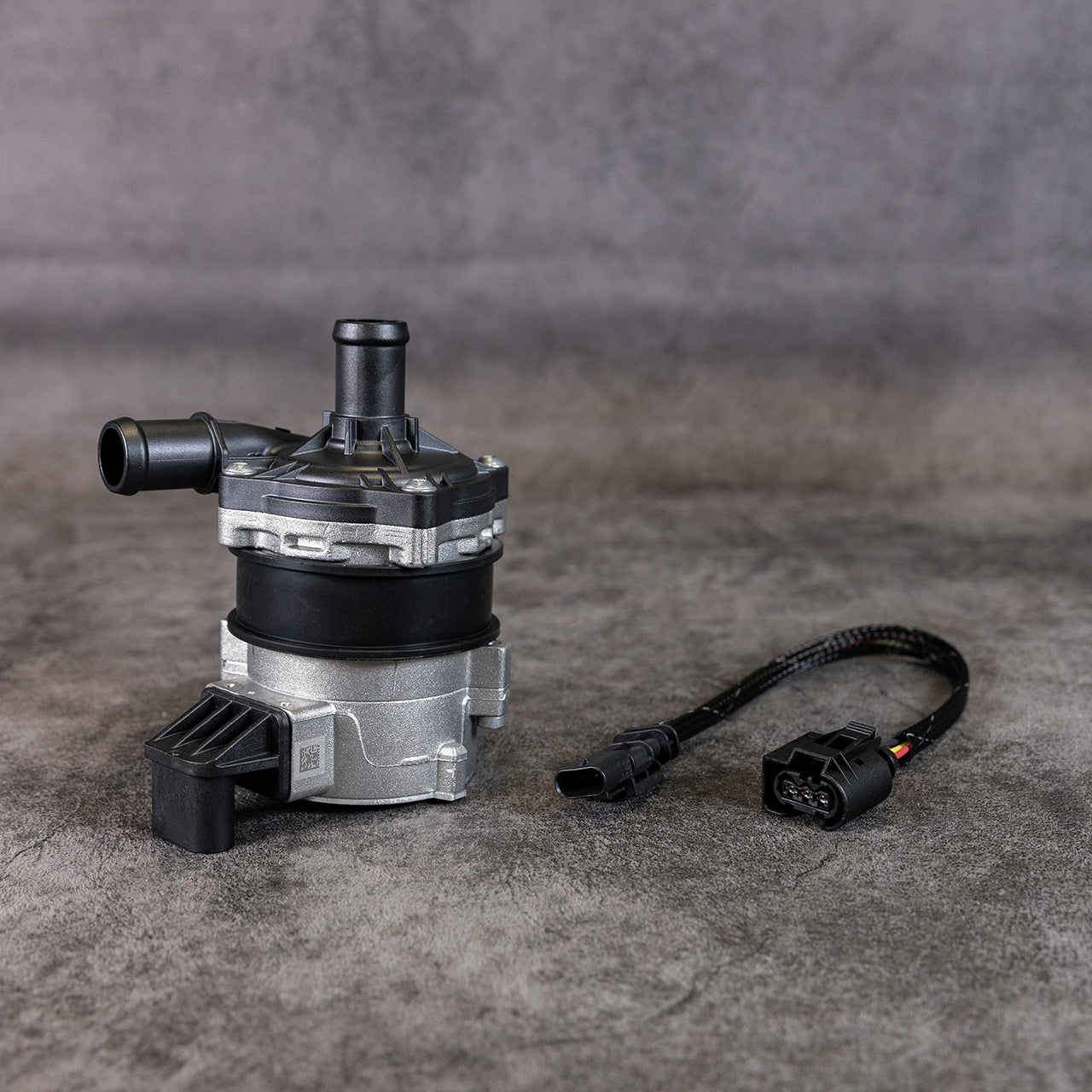

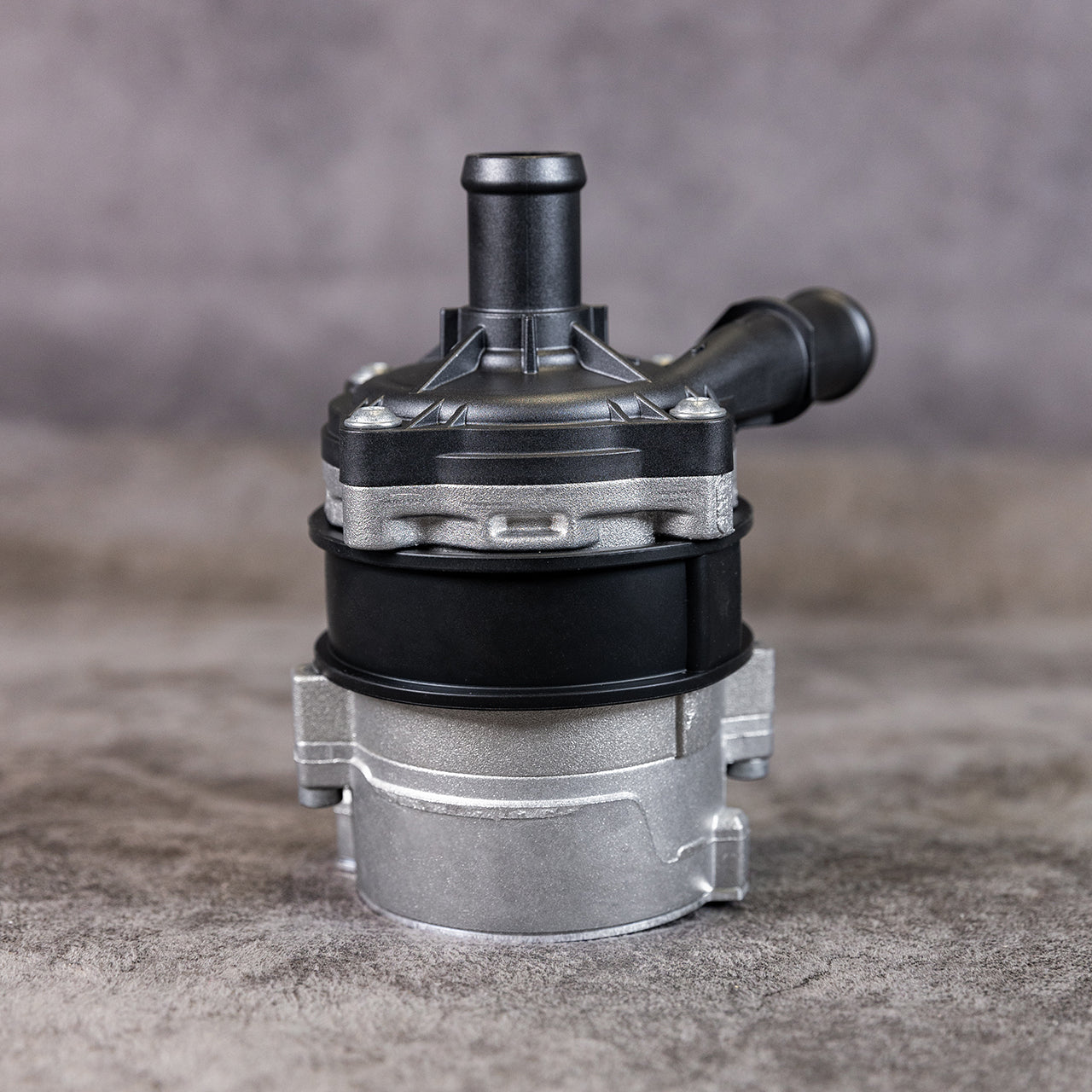

Pierburg CWA150 Pump - with Audi harness

This pump upgrade is a favorite among performance shops and performance users worldwide. The pump offers a robust and innovative design. Driven by a brushless motor, integrated speed controller what can be controlled via remote module(PWM). The pump is extremely reliable while providing great flow and cooling performance.

The pump offers very quiet operation, even when operating at full speeds.

Specifications

• Operation voltage: 9-16 volts
• Weight: approx. 1.0 kg
• Current consumption: 15A max. / (I < 100mA in standby mode)
• Nominal diff. pressure: ≥ 1.40 bar *
• Flow rate: approx. 25 l/min @ 1.40bar / 40 l/min @ 0.80bar
• Speed: approx. 6692 rpm
• Temperature range: -40°C - 80°C (water) / -40°C - 100°C (ambient)
• Protection: IP 54

These pump are an aftermarket product for motorsports and custom use and do not carry a warranty from the manufacturer or distributor.
